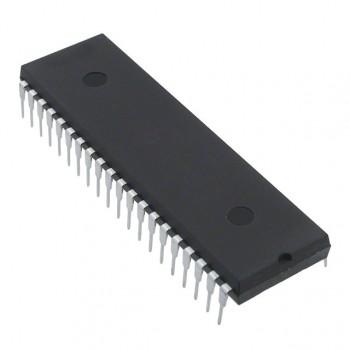

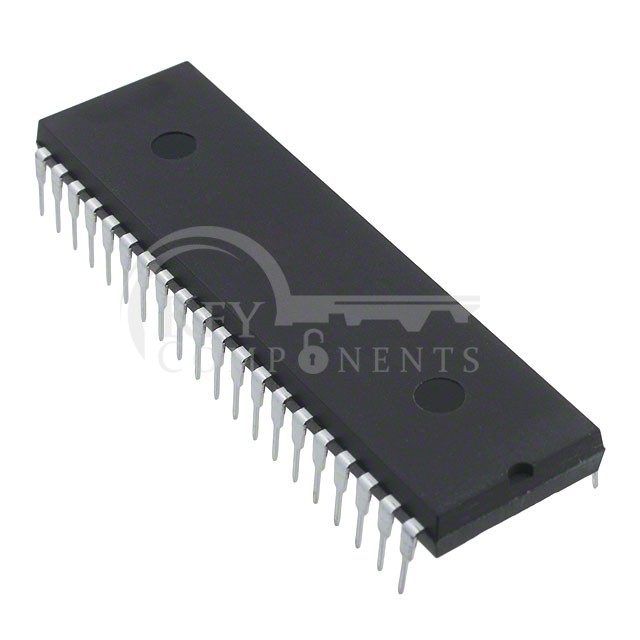

MC705C8ACPE
| Manufacturer Part | MC705C8ACPE |
|---|---|
| Manufacturer | NXP USA Inc. |
| Description | IC MCU 8BIT 8KB OTP 40DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Core Processor: | HC05 |
| Core Size: | 8-Bit |
| Speed: | 2.1MHz |
| Connectivity: | SCI, SPI |
| Peripherals: | POR, WDT |
| Number of I/O: | 24 |
| Program Memory Size: | 8KB (8K x 8) |
| Program Memory Type: | OTP |
| EEPROM Size: | - |
| RAM Size: | 304 x 8 |
| Voltage - Supply (Vcc/Vdd): | 3V ~ 5.5V |
| Data Converters: | - |
| Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Through Hole |
| Package / Case: | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package: | 40-PDIP |
