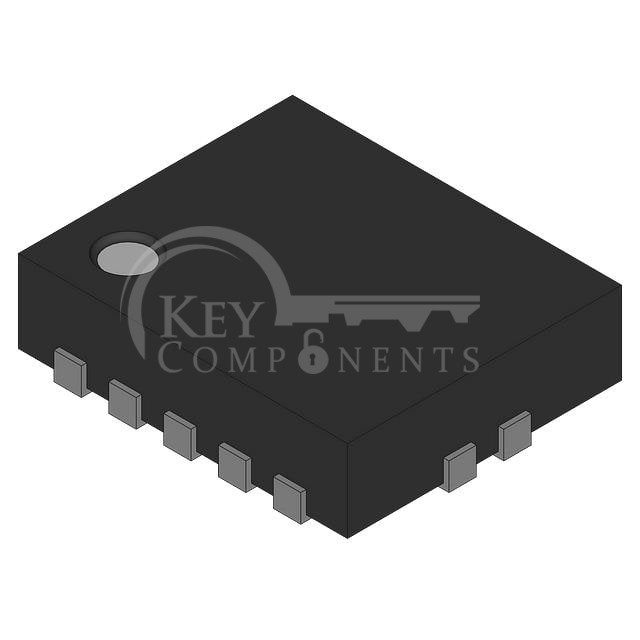

IR3820MTRPBF
| Manufacturer Part | IR3820MTRPBF |
|---|---|
| Manufacturer | International Rectifier |
| Description | SYNCHRONOUS BUCK REGULATOR |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | Step-Down |
| Output Configuration: | Positive |
| Topology: | Buck |
| Output Type: | Adjustable |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 2.5V |
| Voltage - Input (Max): | 21V |
| Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 12V |
| Current - Output: | 12A |
| Frequency - Switching: | 600kHz |
| Synchronous Rectifier: | Yes |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 15-PowerVQFN |
| Supplier Device Package: | PQFN (5x6) |
