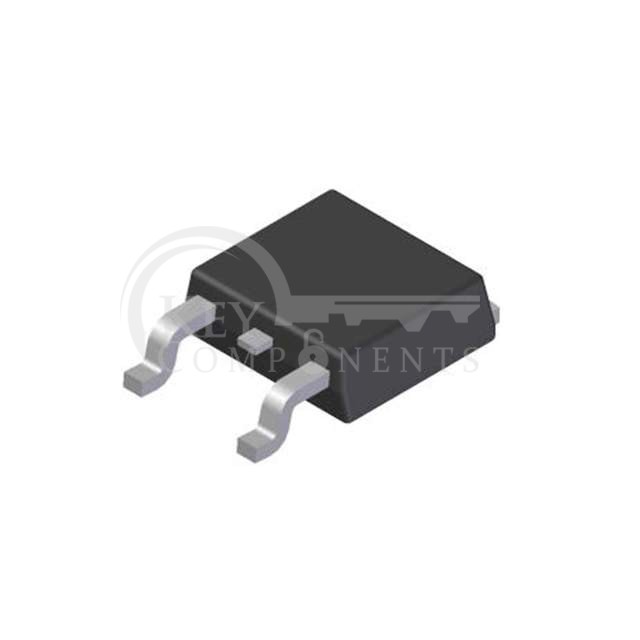

AZ1085D-ADJTRE1
| Manufacturer Part | AZ1085D-ADJTRE1 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REG LINEAR POS ADJ 3A TO252-3 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Configuration: | Positive |
| Output Type: | Adjustable |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 12V |
| Voltage - Output (Min/Fixed): | 1.25V |
| Voltage - Output (Max): | 10.5V |
| Voltage Dropout (Max): | 1.5V @ 3A |
| Current - Output: | 3A |
| Current - Quiescent (Iq): | 10 mA |
| Current - Supply (Max): | - |
| PSRR: | 72dB (120Hz) |
| Control Features: | - |
| Protection Features: | Over Current, Over Temperature |
| Operating Temperature: | 0°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package: | TO-252-3 |
